Test fit of the part
ROLE: CAD Designer
Scope of Work:
• Delivered a 3D model along with a 3D-printed prototype for test fitting directly on the motorcycle to ensure accuracy and proper alignment.
•Overcame challenges of defining precise dimensions and measurements from photographs of the motorcycle, achieving high accuracy in the initial test fit without 3D scanning.
•Created tools specifically for manufacturing and assembly, enhancing the production process and ensuring optimal quality.

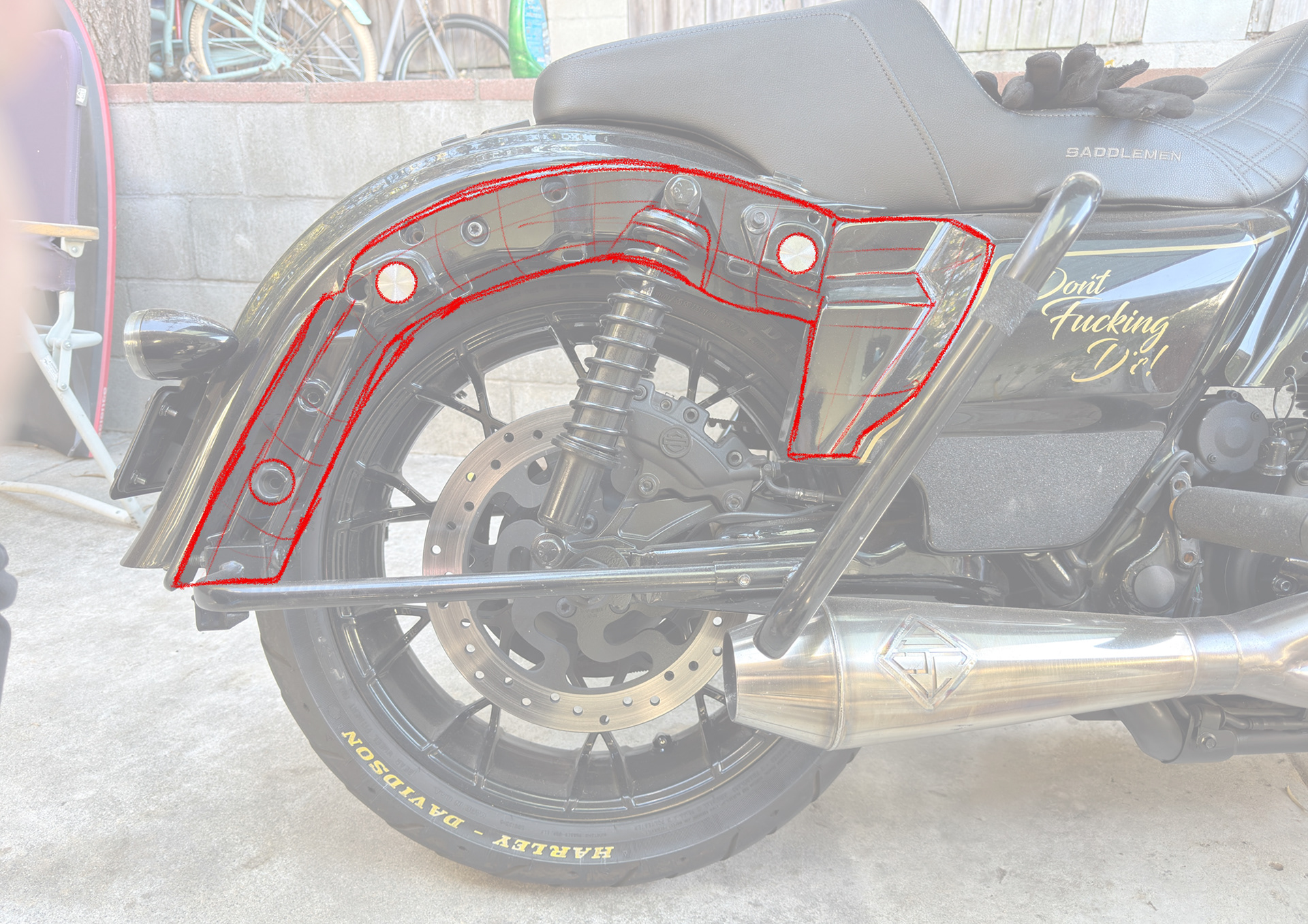

Initial sketch provided by the client

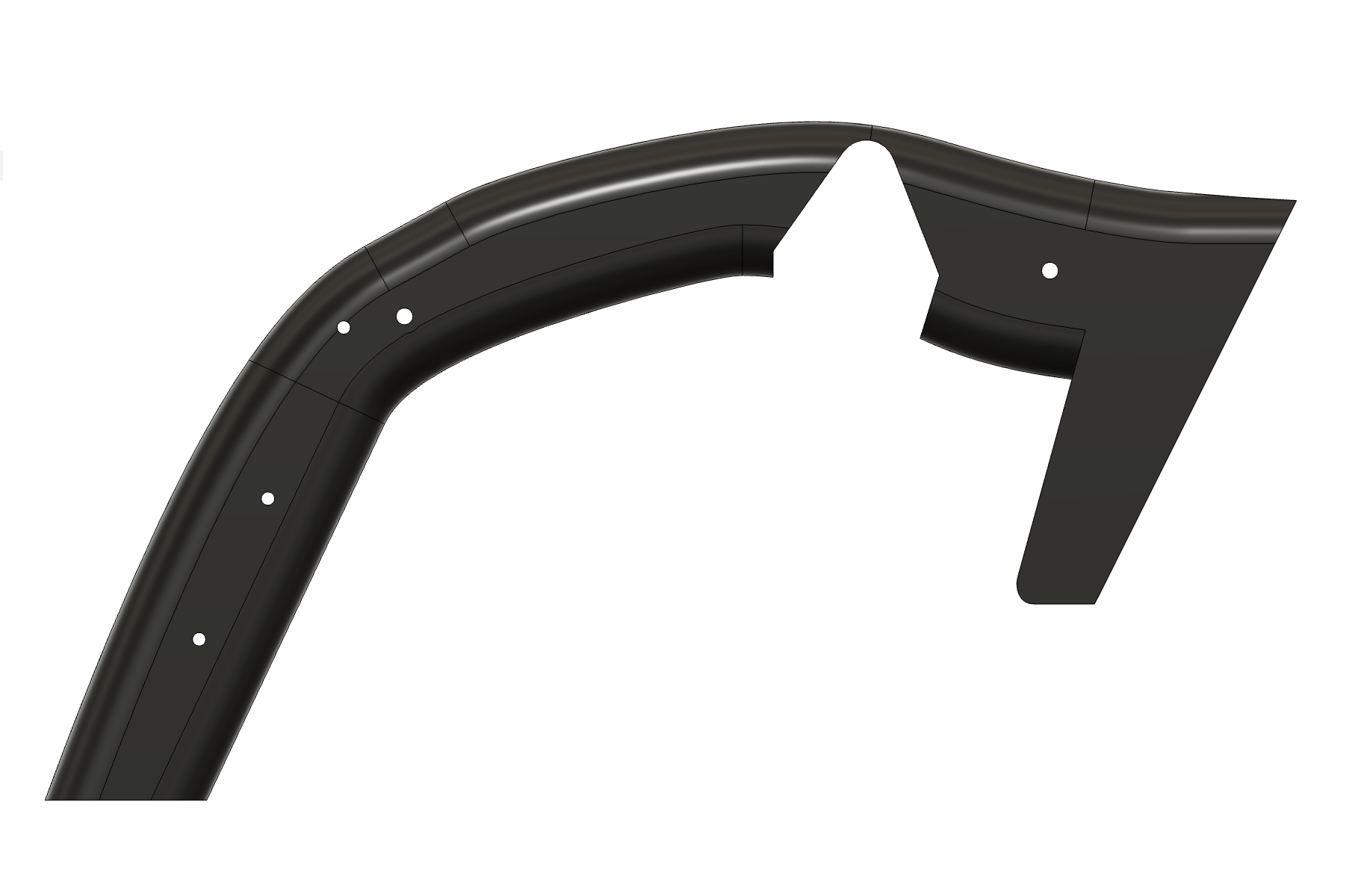

Preliminary design of the part
•Tools: Fusion 360 for design, 3D printer for prototype manufacturing.
•Duration: Approximately one month, including 10 job hours and client-led scheduling.
•Feedback: Received a 5-star review from the client for delivering exceptional results.
•Independent Work: Designed and executed all tasks independently.
