Izobrulo Polylight HeartHug adjustable cover for the Intel RealSense D415 depth sensor
Scope of work:
This design aims to shield the RealSense D415 depth sensor from outdoor precipitation,
particularly in cold weather environments with a high likelihood of snow and rain.
Key Features:
• Water and Snow Protection: The cover ensures the sensor remains shielded from water and snow during operation.

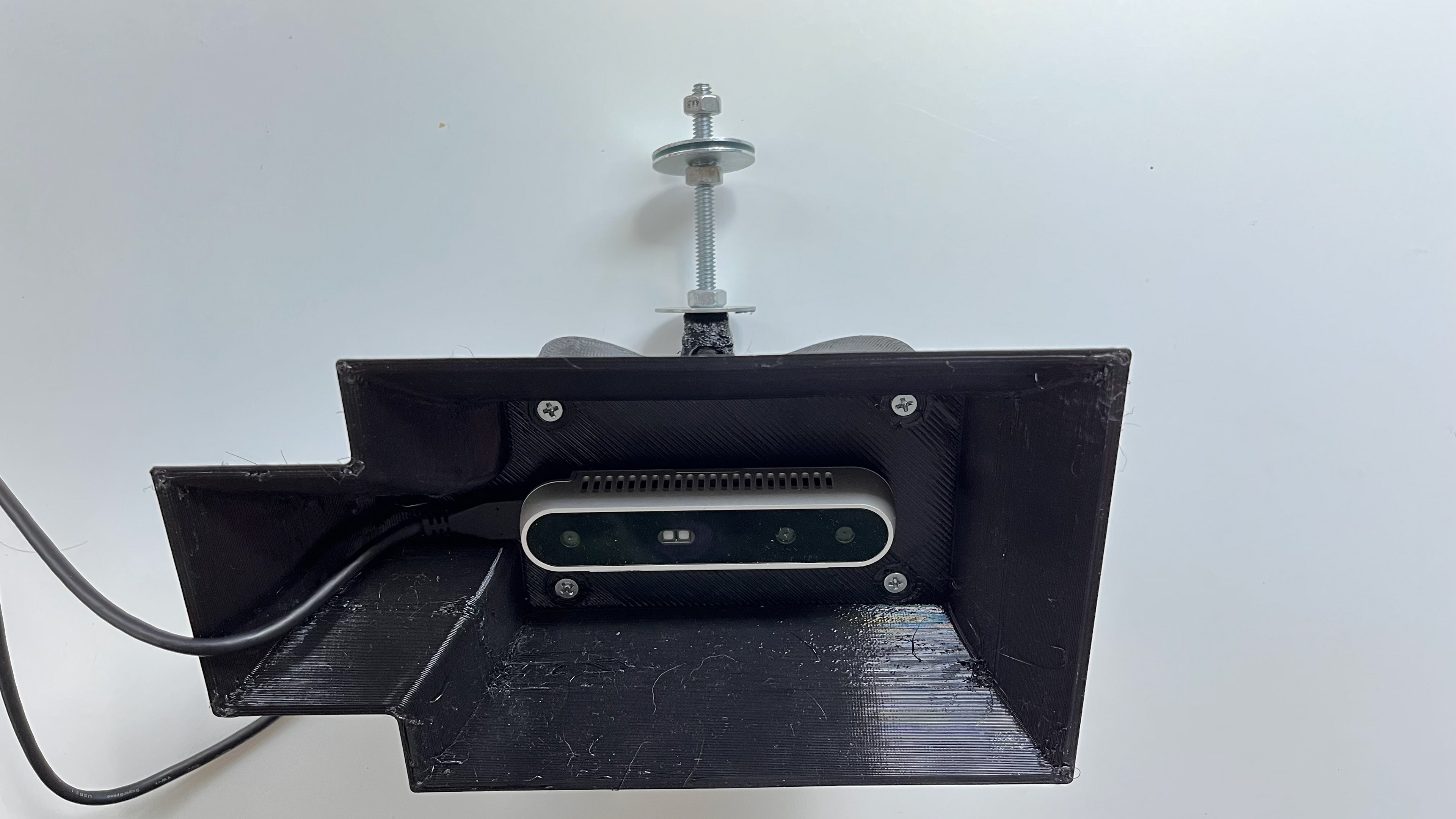

• USB-C Connection Pocket: A designated pocket is integrated into the cover to facilitate easy access to the USB-C connection without compromising protection.

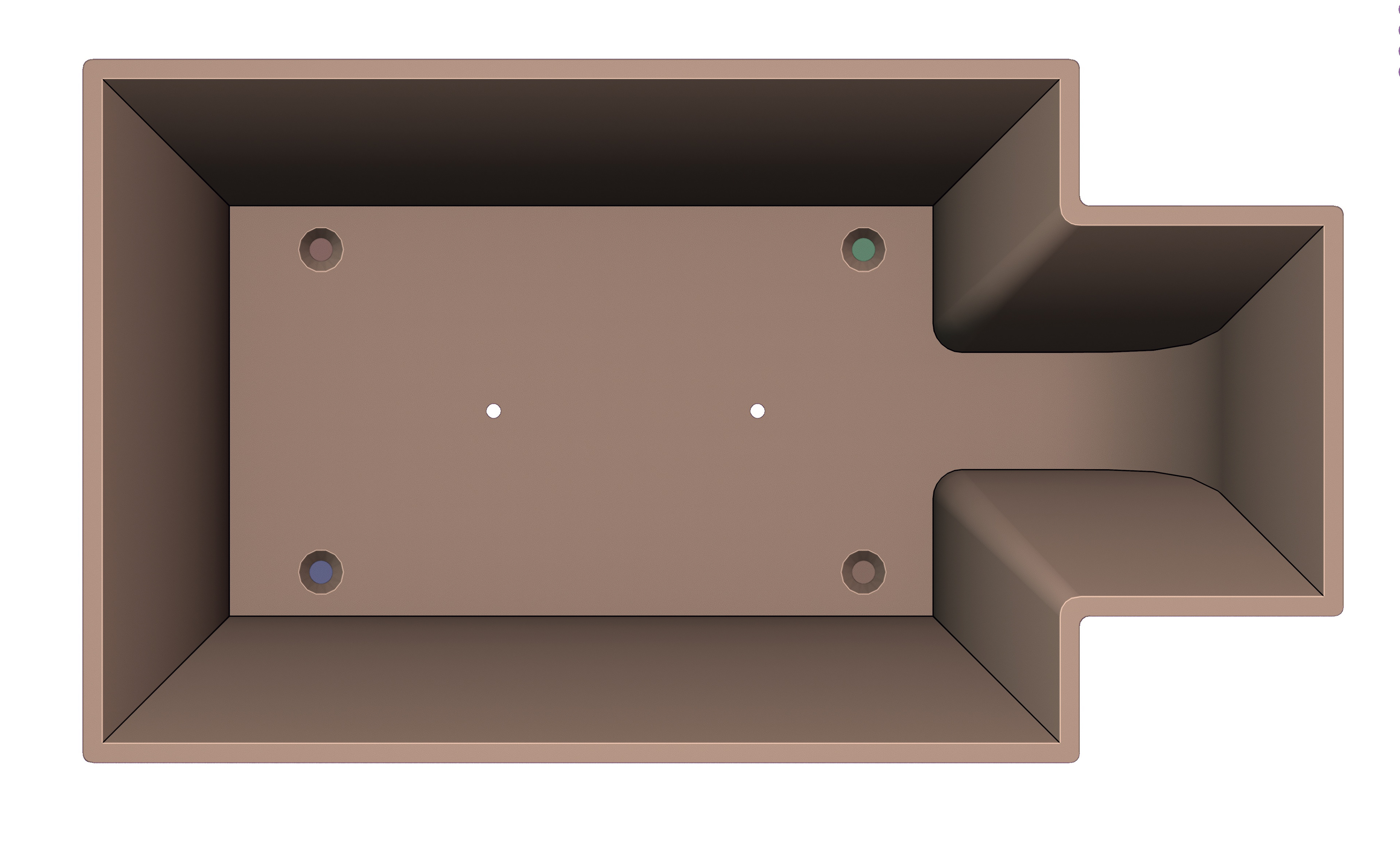

• Optimized Mechanical Layout: The mechanical layout is meticulously designed to align the center section of the sensor with the center of rotation.
This allows for precise adjustments and optimal performance.

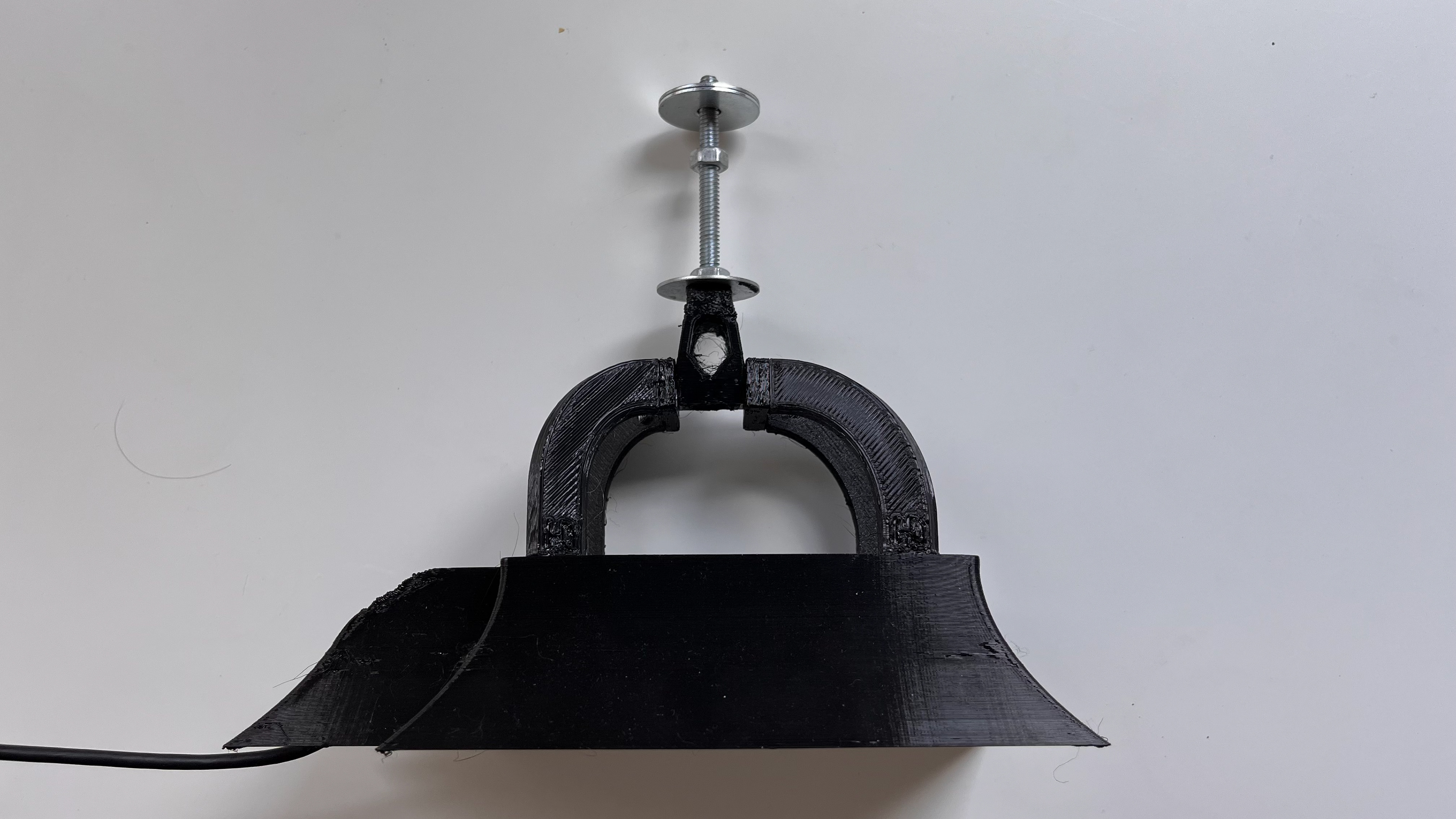

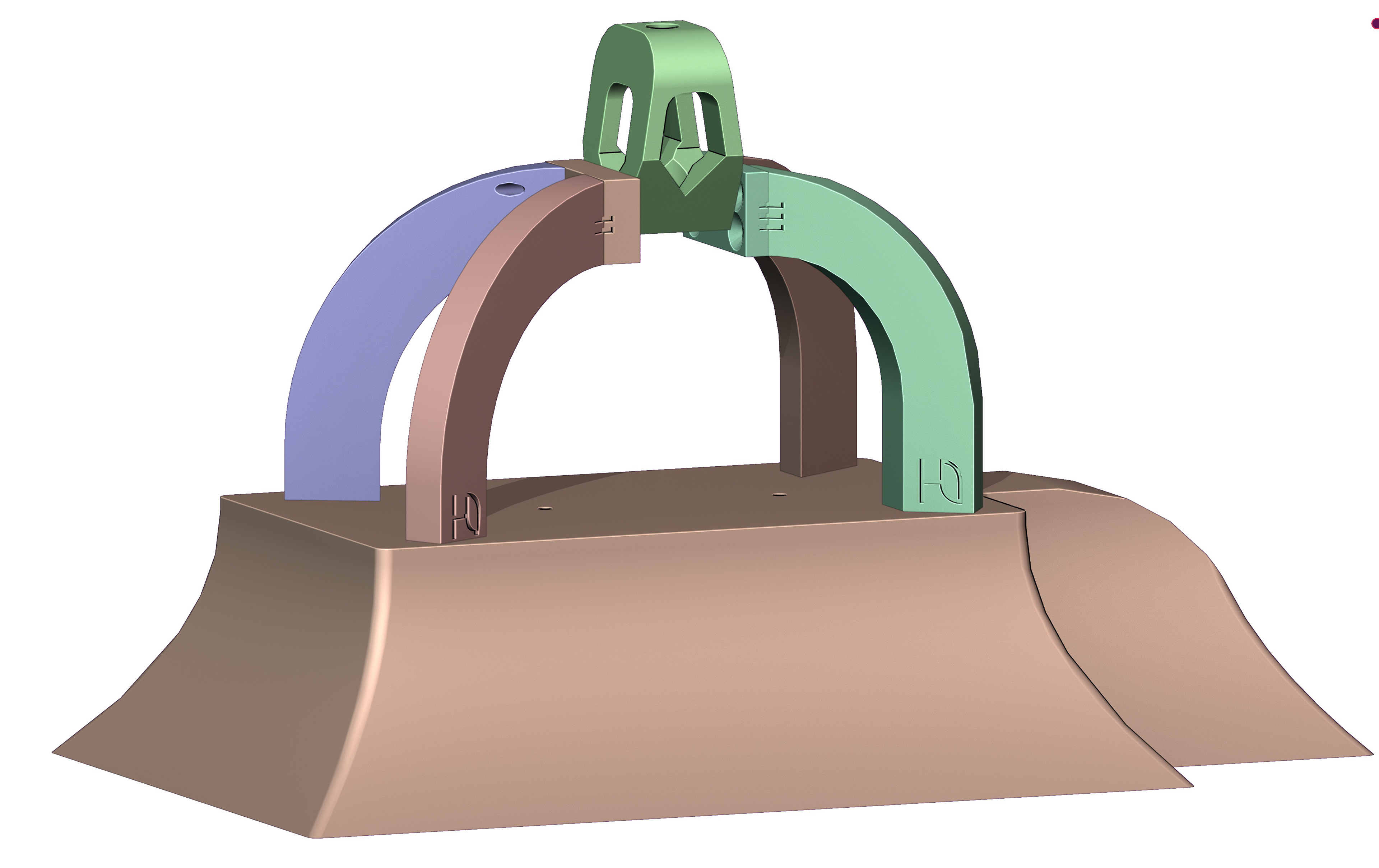

• Hinge Mechanism: The hinge mechanism enables rotation of the sensor, aligning the scanning plane parallel to the ground for efficient operation.
By incorporating these features and considerations, the adjustable cover for the Intel RealSense D415 depth sensor provides robust protection against outdoor elements while maintaining optimal functionality.
Software: Autodesk Fusion 360
3D printer: Different FDM printers
Material: PET-g
Time spent: 8 to 12 hours
