Scope of work:

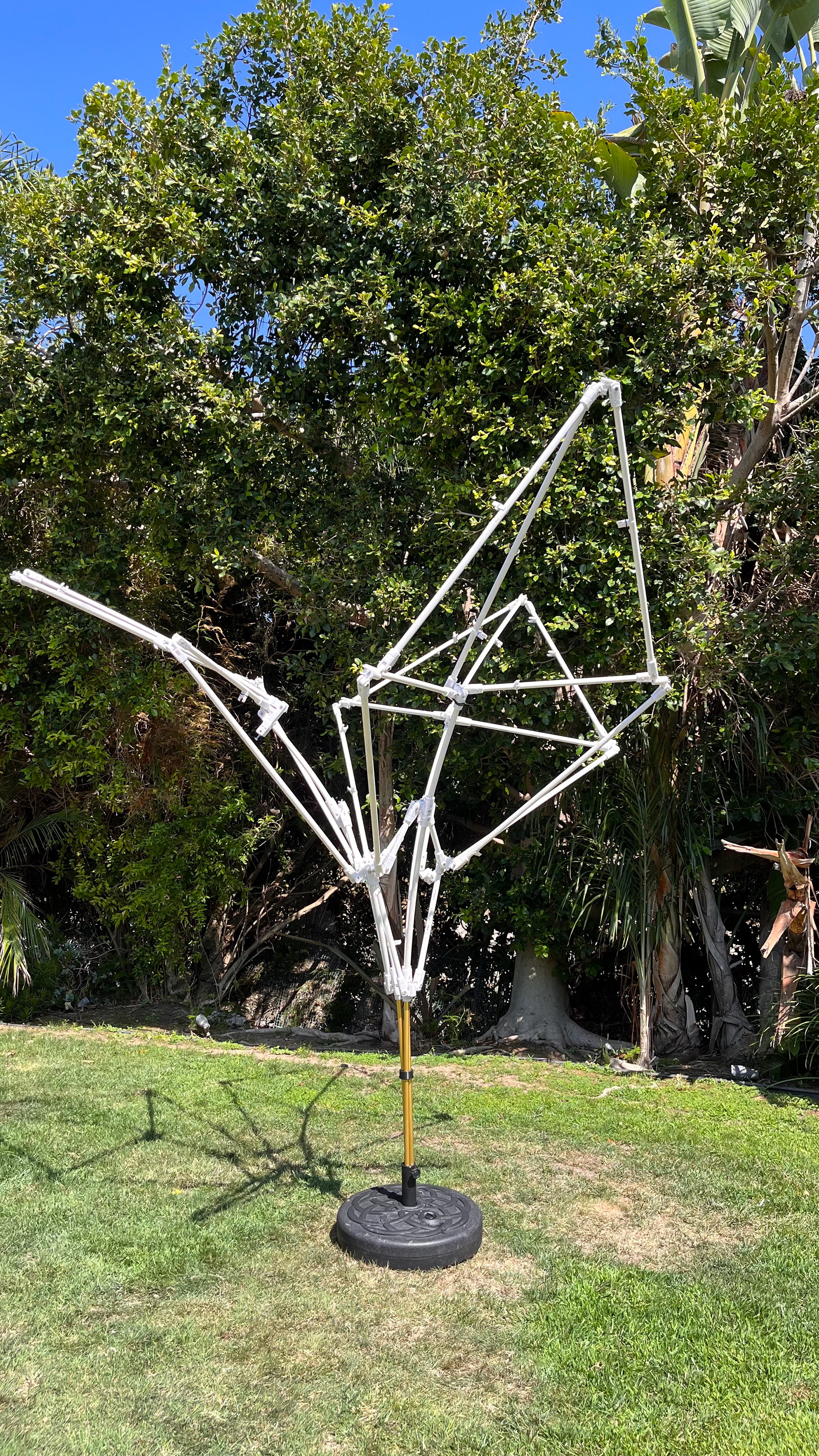

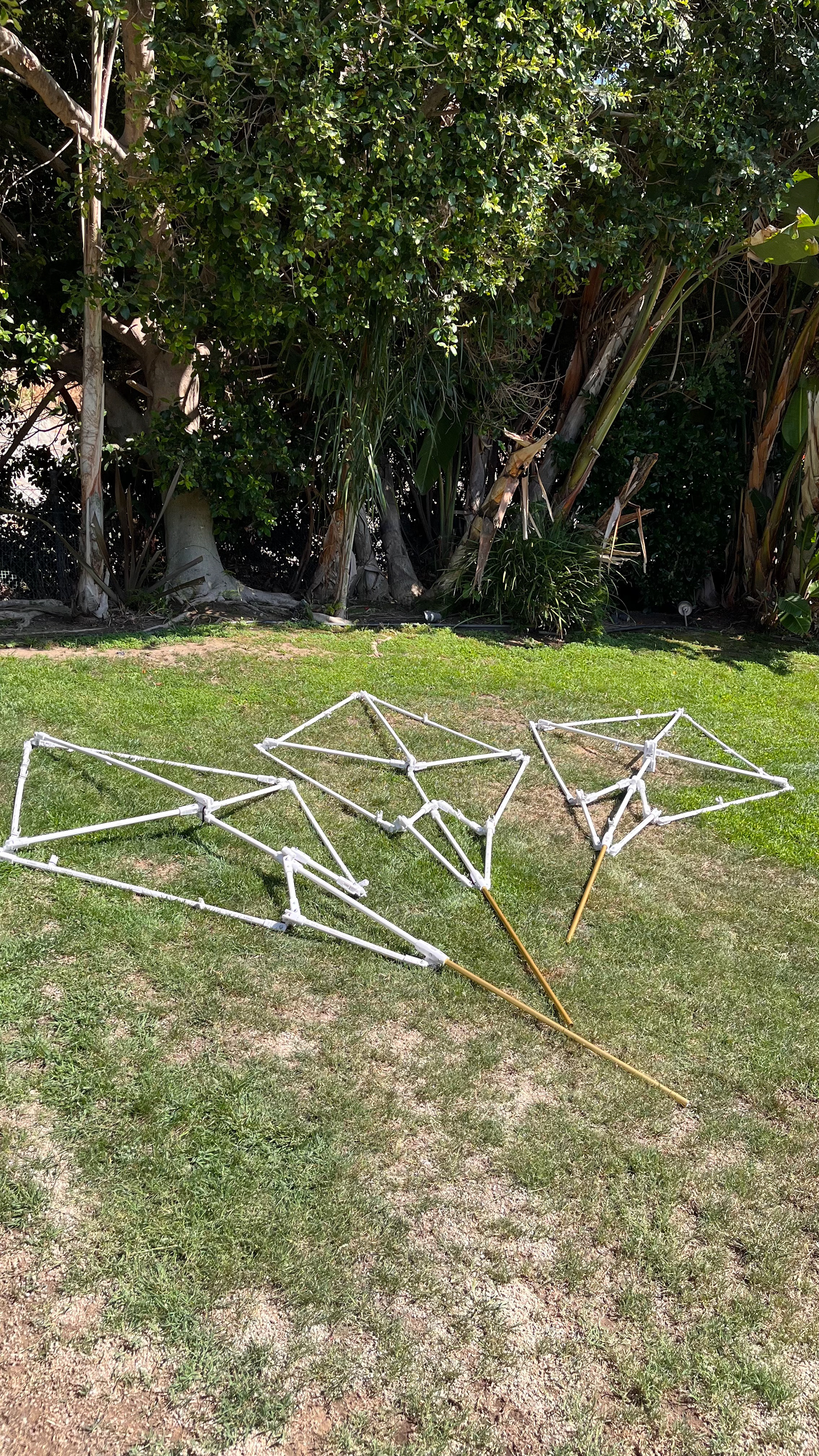

The entire project was dedicated to the design and fabrication of a leaf-like shadow structure, which was made foldable.

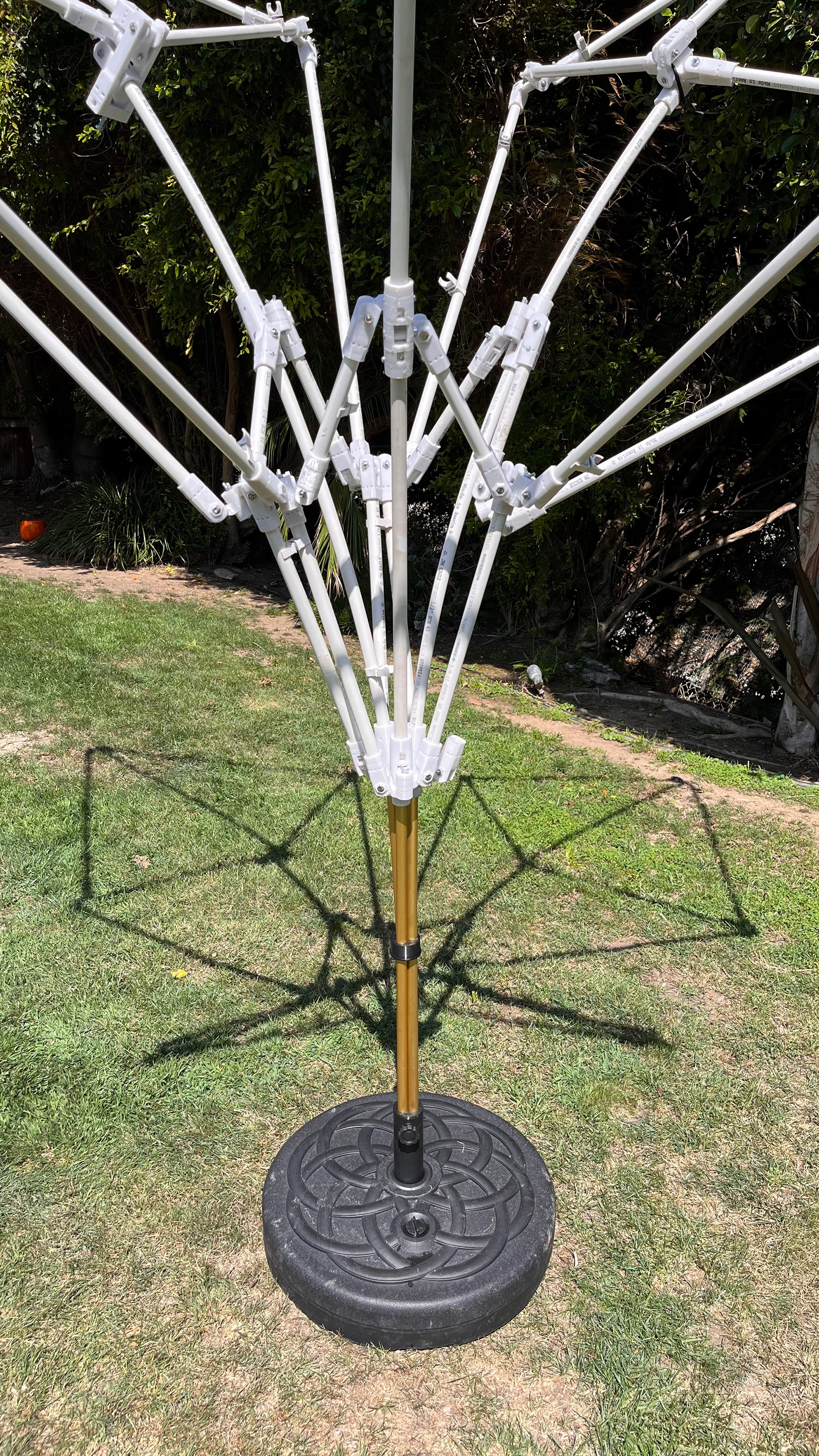

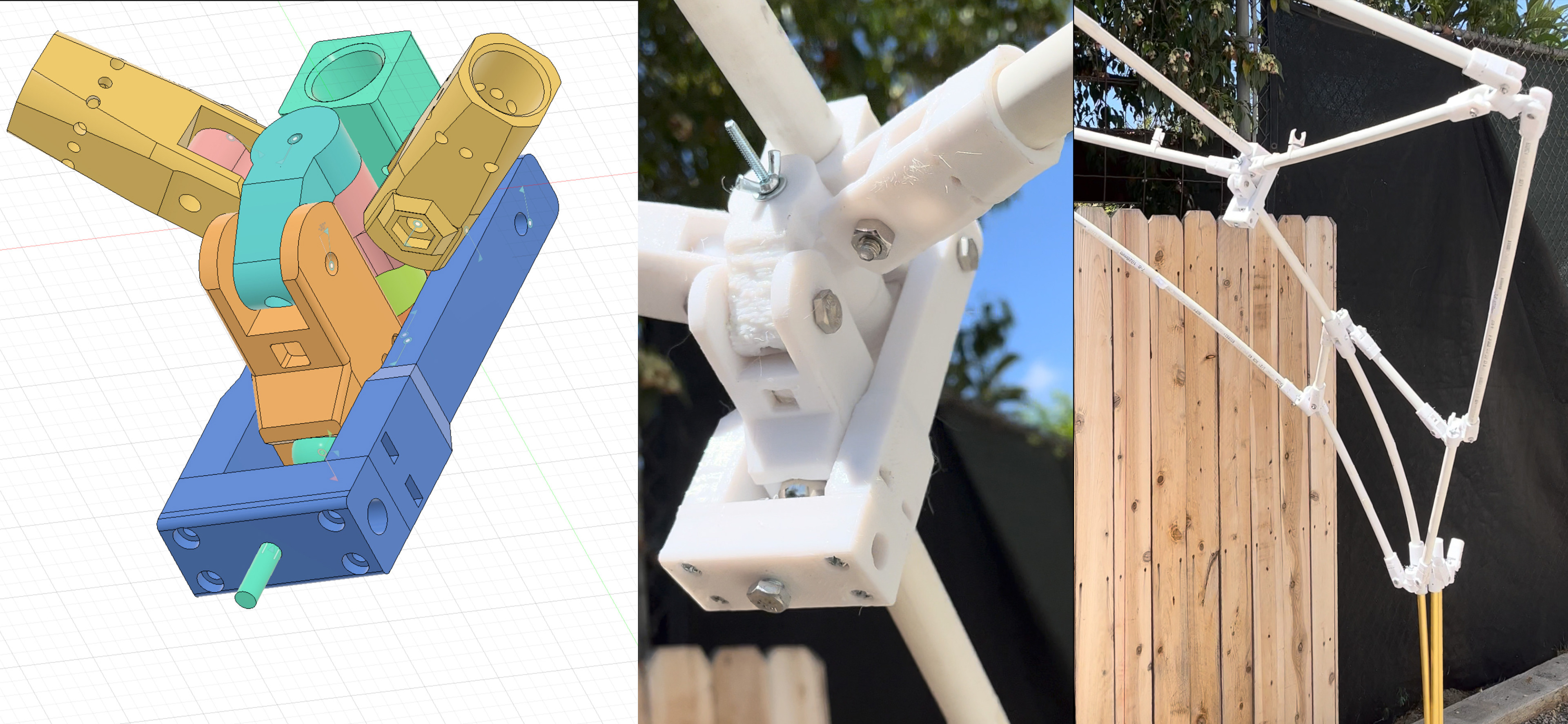

One of the key components was the angle adjustment assembly, responsible for controlling the angle of the top part of the structure and,
at the same time, the size of the shadow footprint.
The color tiling of the structure is not shown in the pictures.
Software: Autodesk Fusion 360
3D printer: Generic FDM printer
Angle adjustment range: 0 – 20 degrees
Material: PET-g
Design time: ~2 hours
Fabrication: ~7 hours
